PLEASE NOTE: ALL PLANS WILL BE PRODUCED USING THE AUTOCAD SOFTWARE AND ALL DRAWINGS BELOW ARE FOR ILLUSTRATION PURPOSES ONLY.
(within 2 to 5 working days)
(within 24 hours)
We can turn your sketch plan or mark up plan into 2D Autocad plan.
All we need is your mark-up plan and we will do the rest. In the absence of an OS plan or TOPO, we can use the Bing Map as the base of your plan.
We can turn your mark-up plan into TCP, all we need are the following:
Please note: trees that were not picked up on TOPO will be plotted in approximate location using Bing Map.
In the absence of TOPO, an OS plan can be used. We will be able to plot trees in approximate locations using Bing Map. A Bing Map can also be used as a base plan together with the OS plan.
For an Outline Planning Application, we will need the Masterplan. We will be able to produce a Preliminary Tree Removal Plan detailing the potential tree/hedge removals and potential impact on tree rooting zone/area during construction phase. We will issue a draft version until you are happy with the plan and issue it in pdf and dwg format.
For a Full Planning Application, we will need the fixed Proposed Plan. We will be able to produce a Tree Removal/Loss Plan detailing the proposed tree/hedgerow removal during construction phase. We will issue a draft version until you are happy with the plan and issue it in pdf and dwg format.
For an Outline Planning Application, we will need the Masterplan. We will be able to produce a Preliminary Tree Protection Plan detailing the potential impact on tree rooting zone/area, mitigation and protection during construction phase. We will issue a draft version until you are happy with the plan and issue it in pdf and dwg format.

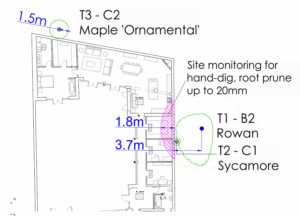

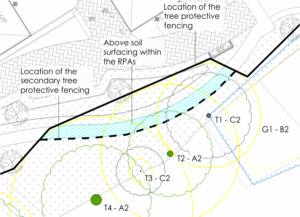

For a Full Planning Application, we will need the fixed Proposed Plan, Drainage Plan, Engineering Plan. We will be able to produce a Tree Protection Plan detailing the impact on tree rooting zone/area, mitigation and protection during demolition and construction phases. We will issue a draft version until you are happy with the plan and issue it in pdf and dwg format.
For much simpler sites, a plan-based might suffice either to accompany the Full Planning Application or to discharge the Planning Condition/s.
We can turn your sketch plan or mark up plan into 2D Autocad plan.
